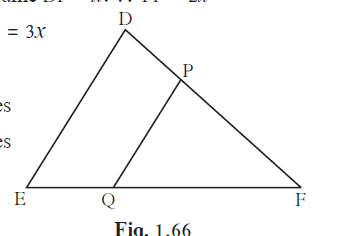

In the given figure 1.66, seg PQ || seg DE, A(∆PQF) = 20 units, PF = 2 DP,
Practice Set 1.4 | Q 7 | Page 25
In the given figure 1.66, seg PQ || seg DE, A(∆PQF) = 20 units, PF = 2 DP, then Find A(◻DPQE) by completing the following activity.
Solution
Given:
seg PQ || seg DE
A(∆PQF) = 20 units
PF = 2 DP
Let us assume DP = x
∴ PF = 2x
[DF = DP + PF = x + 2x = 3x]
In △FDE and △FPQ
∠FDE = ∠FPQ (Corresponding angles)
∠FED = ∠FQP (Corresponding angles)
By AA test of similarity
△FDE ∼ △FPQ
[therefore frac{Aleft( bigtriangleup FDE right)}{Aleft( bigtriangleup FPQ right)} = frac{{FD}^2}{{FP}^2} = frac{left( 3x right)^2}{left( 2x right)^2} = frac{9}{4}]
[Aleft( bigtriangleup FDE right) = frac{9}{4}Aleft( bigtriangleup FPQ right) = frac{9}{4} times 20 = 45]
[therefore Aleft( square DPQE right) = Aleft( bigtriangleup FDE right) – Aleft( bigtriangleup FPQ right)]
[ = 45 – 20]
[ = 25]
Solution:-
Given: seg PQ || seg DE, A(∆PQF) = 20 units, PF = 2DP
Let DP = x, then PF = 2x DF = DP + PF = x + 2x = 3x
In △FDE and △FPQ, ∠FDE = ∠FPQ (Corresponding angles) ∠FED = ∠FQP (Corresponding angles) By AA test of similarity, △FDE ~ △FPQ
Therefore, A(∆FDE)/A(∆FPQ) = (FD/FP)^2 = (3x/2x)^2 = 9/4 A(∆FDE) = (9/4)A(∆FPQ) = (9/4) × 20 = 45
Therefore, A(◻DPQE) = A(∆FDE) – A(∆FPQ) = 45 – 20 = 25 square units.
