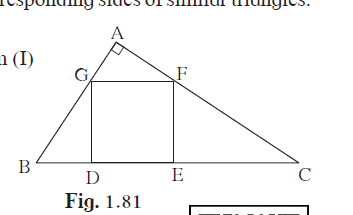

In the given figure, the vertices of square DEFG are on the sides of ∆ABC. ∠A = 90°.
Problem Set 1 | Q 13 | Page 29
In the given figure, the vertices of square DEFG are on the sides of ∆ABC. ∠A = 90°. Then prove that DE2 = BD × EC. (Hint: Show that ∆GBD is similar to ∆CFE. Use GD = FE = DE.)
Given: ▢DEFG is a square.
To prove: DE2 = BD × EC
Proof: ▢DEFG is a square. ...(Given)
∴ DE = EF = GF = GD ...(Sides of a square)(I)
∠GDE = ∠DEF = 90° ...(Angles of a square)
∴ seg GD ⊥ sides BC and seg EF⊥ side BC.
In ΔBAC and ΔBDG,
∠BAC ≅ ∠BDG ...(Each measures 90°)
∠ABC ≅ ∠DBG ...(Common angles)
∴ ΔBAC ~ ΔBDG ...(AA test of similarity)(II)
Similarly,
ΔBAC ~ ΔFEC ...(III)
∴ ΔBDG ~ ΔFEC ...[From II and III]
∴ `"BD"/"EF" = "GD"/"EC"` ...(Corresponding sides of similar triangles are in proportion)
∴ `"BD"/"DE" = "DE"/"EC"` ...(From 1)
∴ DE2 = BD × EC
Given: ▢DEFG is a square.
To prove: DE2 = BD × EC
Proof:
Given that ▢DEFG is a square, therefore, all its sides are equal.
Thus, DE = EF = FG = GD (from the definition of a square) …(1)
Also, the angles of the square are 90 degrees, so ∠GDE = ∠DEF = 90°.
Since the diagonals of a square bisect each other and are perpendicular to each other, we have seg GD ⊥ sides BC and seg EF ⊥ side BC.
Consider ΔBAC and ΔBDG,
∠BAC and ∠BDG are right angles (as they lie in a square)
∠ABC and ∠DBG are equal (as they are opposite angles of parallelogram BDGF)
Thus, by AA test of similarity, we get
ΔBAC ~ ΔBDG …(2)
Similarly, ΔBAC ~ ΔFEC …(3)
From equations (1), (2), and (3), we can conclude that
ΔBDG ~ ΔFEC
Therefore, corresponding sides of the triangles are in proportion.
Hence, "BD"/"EF" = "GD"/"EC"
Using equation (1), we get "BD"/"DE" = "DE"/"EC"
Multiplying both sides by DE, we get
DE<sup>2</sup> = BD × EC
Hence, proved.
